Contextual Feature Recommendation

What are CFRs?

CFR Messaging Surface is the doorhanger, which anchors to one of the UI elements such as the application menu, the identity panel and so on. CFRs like any other messaging screen has specific triggers. You can learn more about triggers here.

More examples of templates supported with CFR

Note:

For new messages, Feature Callout is recommended instead of CFR.

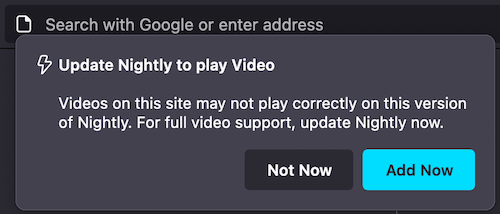

Example of Doorhanger

Testing CFRs

Via the dev tools:

1. npm (packaged with Node.js)
2. npm (packaged with Node.js)
3. npm (packaged with Node.js)
4. npm (packaged with Node.js)
5. npm (packaged with Node.js)
6. npm (packaged with Node.js)
7. npm (packaged with Node.js)

• Note: Some messages will not be shown when testing multiple CFRs due to overlap, ensure you close the previous message before testing another

• Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).

Via Experiments:

You can test CFR messaging surface by creating an experiment or landing message in tree. Messaging Journey captures creating and testing experiments via Nimbus.

Example JSON for CFR

{
  "id": "Test_CFR",
  "groups": [
    "cfr"
  ],
  "template": "cfr_doorhanger",
  "content": {
    "persistent_doorhanger": true,
    "anchor_id": "tracking-protection-icon-container",
    "layout": "icon_and_message",
    "icon": "chrome://activity-stream/content/data/content/assets/glyph-webextension-16.svg",
    "icon_dark_theme": "chrome://activity-stream/content/data/content/assets/glyph-webextension-16.svg",
    "icon_class": "cfr-doorhanger-small-icon",
    "heading_text": "Update Nightly to play Video",
    "text": "Videos on this site may not play correctly on this version of Nightly. For full video support, update Nightly now.",
    "buttons": {
      "primary": {
        "label": {
          "string_id": "cfr-doorhanger-extension-ok-button"
        },
        "action": {
          "type": "OPEN_PREFERENCES_PAGE",
          "data": {
            "category": "sync",
            "entrypoint": "cfr-test"
          }
        }
      },
      "secondary": [
        {
          "label": {
            "string_id": "cfr-doorhanger-extension-cancel-button"
          },
          "action": {
            "type": "CANCEL"
          }
        }
      ]
    },
    "skip_address_bar_notifier": true
  },
  "frequency": {
    "lifetime": 1
  },
  "trigger": {
    "id": "nthTabClosed"
  },
  "targeting": "firefoxVersion >= 115"
}

Legacy Simple CFR Template

---

The “Simple CFR Template” is a two-stage UI (a chiclet notification and a door-hanger) that shows up on a configurable trigger condition, such as when the user visits a particular web page.

To test specific Test Messages with legacy CFR templates in the tree, follow these steps:

1. Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).
2. Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).
3. Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).
4. Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).
5. Note: The "anchor_id" prop is the ID of the element the CFR will attach to (example below: tracking-protection-icon-box). Setting prop skipaddressbarnotifier to true will show the doorhanger straight away skipping url bar notifier (See [Bug 1831198](https://bugzilla.mozilla.org/showbug.cgi?id=1831198)).

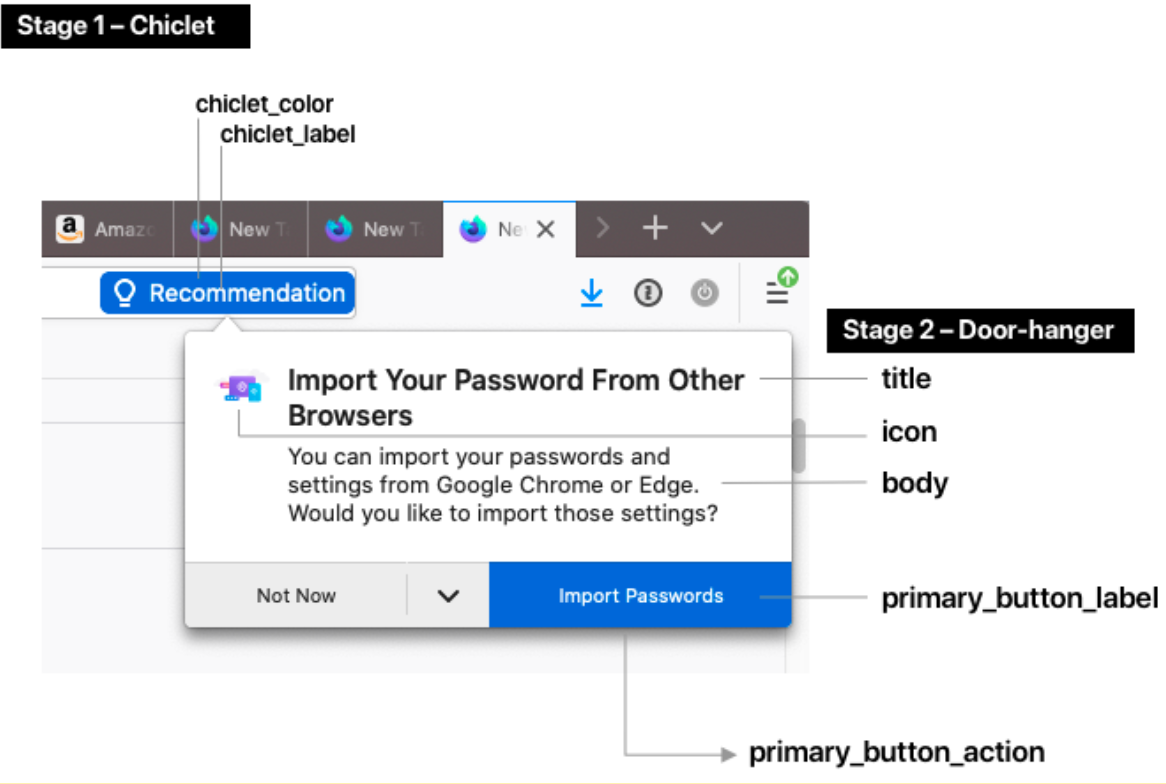

Doorhanger Configuration

Stage 1 – Chiclet

• chiclet_label: The text that shows up in the chiclet. 20 characters max.
• chiclet_color: The background color of the chiclet as a HEX code.

Stage 2 – Door-hanger

• title: Title text at the top of the door hanger.
• body: A longer paragraph of text.
• icon: An image (please provide a URL or the image file up to 96x96px).
• primary_button_label: The label of the button.
• primary_button_action: The special action triggered by clicking on the button. Choose any of the available button actions. Common examples include opening a section of about:preferences, or opening a URL.
